项目案例

自动化生产如何配置克莱普零点定位系统

一、需求梳理

1、三轴机床使用,配置零点定位单元,精度小于0.005mm,至少4个定位器,单定位器锁紧力大于12KN.



2、自动化中运用,自动清洁,气密检测,预留RFID芯片安装位置。



3、托盘承重大于68KG。 托盘最大重量(含最大产品小于110KG)。托盘+附件小于42KG



4、尺寸要求:最大零件尺寸:大于500X500X400;托盘尺寸:大于500x500

自动化生产如何配置克莱普零点定位系统 零点定位解决方案 第1张

一、方案整体

客户有五十多种零件,但只有卧式加工中心,为了实现这种多品种小批量的生产,他们给客户配备了克莱普零点定位系统。更换夹具的时间只有1分钟

Customers have more than 50 kinds of parts, but there is only one horizontal machining center. In order to achieve this kind of multi variety and small batch production, they have equipped customers with clap zero positioning system. The time to change the fixture is only one minute.

自动化生产如何配置克莱普零点定位系统 零点定位解决方案 第2张

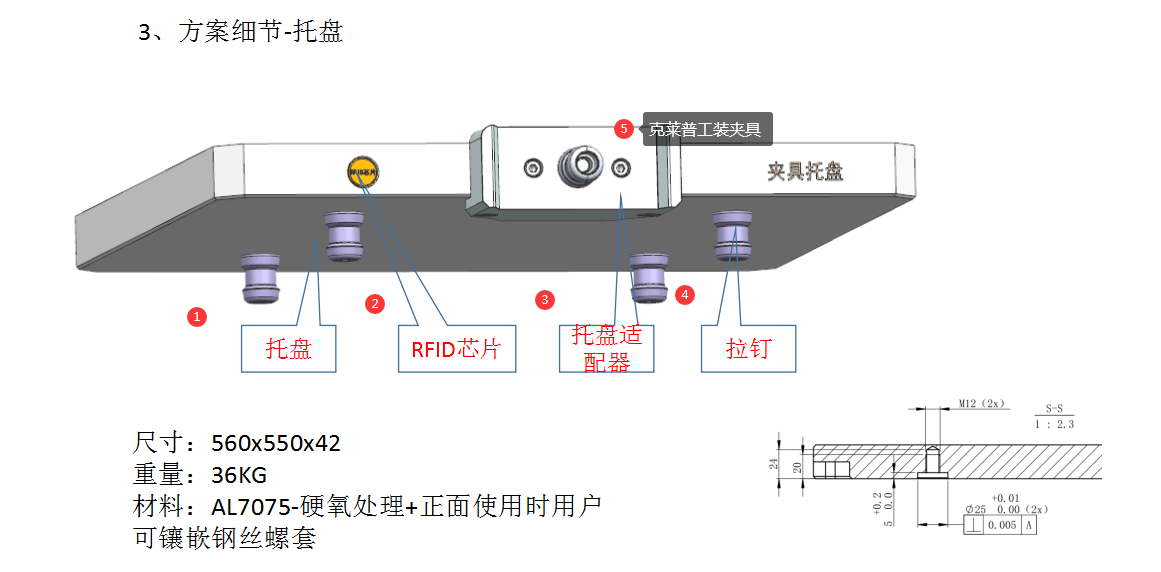

尺寸:560x550x42//重量:36KG//材料:AL7075-硬氧处理+正面使用时用户可镶嵌钢丝螺套//零点托盘配置RFID芯片,能够自动识别。

自动化生产如何配置克莱普零点定位系统 零点定位解决方案 第3张

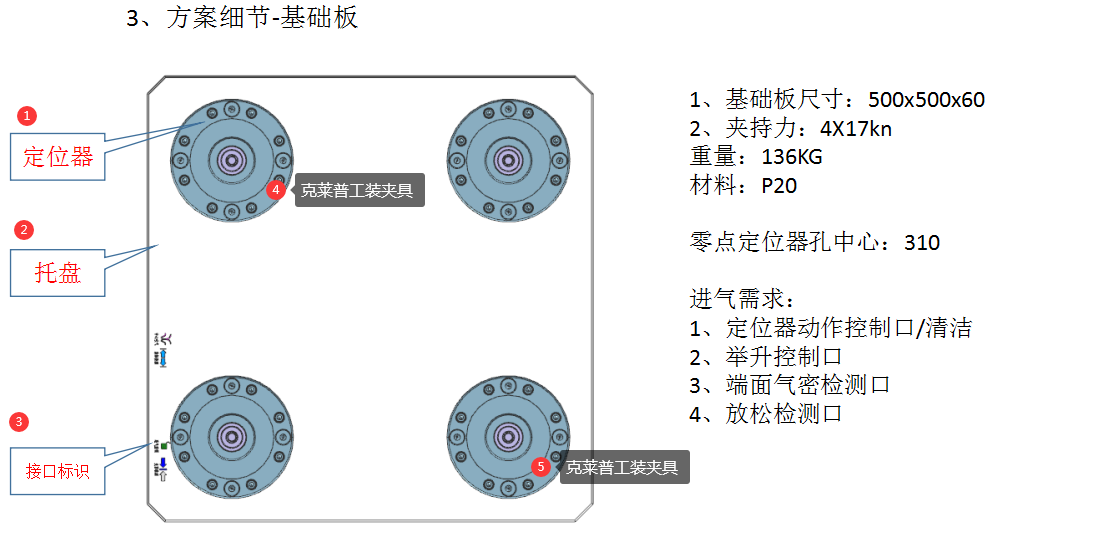

1、基础板尺寸:500x500x60//2、夹持力:4X17kn//3、气压解锁;基板材质:模具钢定位器表面及活塞硬化处理;//4、 重复定位精度<0.005mm;//5、气密检测//6、自动清洁

2、进气需求:

①、定位器动作控制口/清洁

②、举升控制口

③、端面气密检测口

④、放松检测口

克莱普为客户配置的工艺装备能够节省工件的装夹时间,将原来在机内的装夹(机床的等待时间)减少,加工的同时工件可以在机外进行装夹,机床加工结束时可以快速实现机械手自动上下料,从而提高生产节拍及机床利用率。

The process equipment configured by clap for customers can save the clamping time of workpieces, reduce the original clamping in the machine (waiting time of the machine tool), and the workpiece can be clamped outside the machine at the same time. When the machine tool is finished, it can quickly realize the automatic loading and unloading of the manipulator, so as to improve the production rhythm and the utilization rate of the machine tool.
